If your team maintains its own RAG system or hosts content in a third-party knowledge service like AWS Bedrock, you can connect these external sources to Dify instead of migrating content into Dify’s built-in knowledge base. This lets your AI applications retrieve information directly from your existing infrastructure while you retain full control over the retrieval logic and content management.
External Knowledge Base Architecture
Connecting an external knowledge base involves three steps:
  1. Build an API service that Dify can query.
  2. Register the API endpoint in Dify.
  3. Connect a specific knowledge source through the registered API.
When your application runs, Dify sends retrieval requests to your endpoint and uses the returned chunks as context for LLM responses.
If you’re connecting to LlamaCloud, install the LlamaCloud plugin instead of building a custom API. See the video walkthrough for a complete setup demo.If you’re building a plugin for another knowledge service, the LlamaCloud plugin’s source code is available for reference.
Dify only has retrieval access to external knowledge bases—it cannot modify or manage your external content. You maintain the knowledge base and its retrieval logic independently.

​
Step 1: Build the Retrieval API

Build an API service that implements the External Knowledge API specification. Your service needs a single POST endpoint that accepts a search query and returns matching text chunks with similarity scores.

​
Step 2: Register an External Knowledge API

An External Knowledge API stores your endpoint URL and authentication credentials. Multiple knowledge bases can share one API connection.
  1. Go to Knowledge, click External Knowledge API in the upper-right corner, then click Add an External Knowledge API.
  2. Fill in the following fields:
    • Name: A label to distinguish this API connection from others.
    • API Endpoint: The base URL of your external knowledge service. Dify appends /retrieval automatically when sending requests.
    • API Key: The authentication credential for your service. Dify sends this as a Bearer token in the Authorization header.
Dify validates the connection by sending a test request to your endpoint when you save.

​
Step 3: Create an External Knowledge Base

With the API registered, connect an external knowledge source to Dify. This creates a knowledge base in Dify that is linked to your external system.

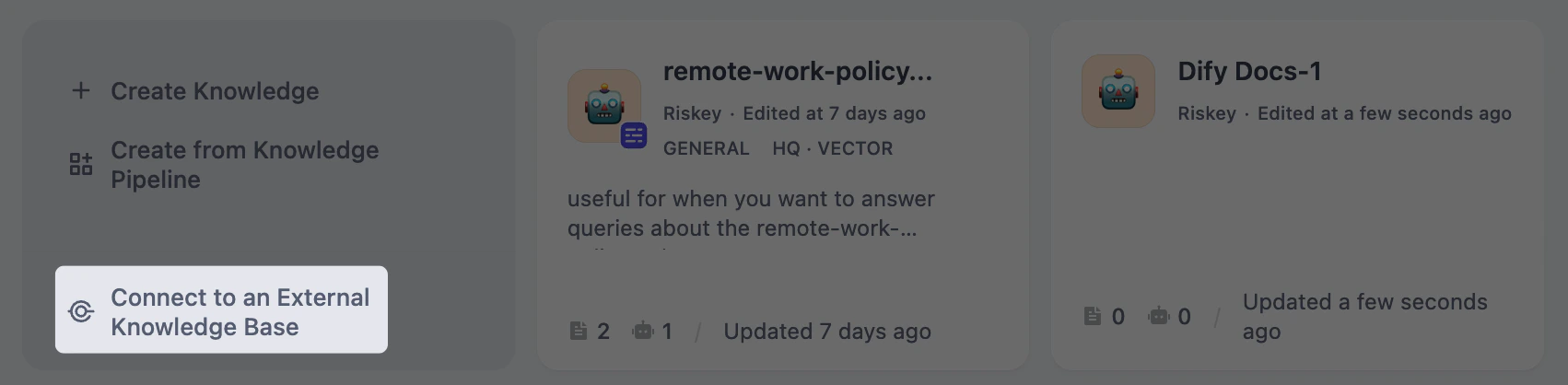

  1. Go to Knowledge and click Connect to an External Knowledge Base.
    Connect to External Knowledge Base
  2. Fill in the following fields:
    • External Knowledge Name and Knowledge Description (optional).
    • External Knowledge API: Select the API connection you registered.
    • External Knowledge ID: The identifier of the specific knowledge source within your external system, passed to your API as the knowledge_id field. This is whatever ID your external service uses to distinguish between different knowledge bases. For example, a Bedrock knowledge base ARN or an ID you defined in your own system.
      The External Knowledge API and External Knowledge ID cannot be changed after creation. To use a different API or knowledge source, create a new external knowledge base.
    • Retrieval Settings:
      • Top K: Maximum number of chunks to retrieve per query. Higher values return more results but may include less relevant content.
      • Score Threshold: Minimum similarity score for returned chunks. Enable this to filter out low-relevance results. Use higher value for stricter relevance or lower value to include broader matches. When disabled, all results up to the Top K limit are returned regardless of score.
Once created, the external knowledge base is available for use in your applications just like any built-in knowledge base. See Integrate Knowledge Within Application for details.

​
Troubleshoot

​
Connection Refused or Timeout (Self-Hosted)

Dify routes outbound HTTP requests through a Squid-based SSRF proxy. If your external knowledge service runs on the same host as Dify or its domain is not allowlisted, the proxy blocks the request. To allow connections, add your service’s domain to the allowed_domains ACL in docker/ssrf_proxy/squid.conf.template:
acl allowed_domains dstdomain .marketplace.dify.ai .your-kb-service.com
Restart the SSRF proxy container after editing.

​
API Response Format Issues

If retrieval fails or returns unexpected results, verify your API response against the External Knowledge API specification. Common issues:
  • The metadata field in each record must be an object ({}), not null. A null value causes errors in the retrieval pipeline.
  • The content and score fields must be present in every record.
