Data Source Plugin

Data source plugins are a new type of plugin introduced in Dify 1.9.0. In a knowledge pipeline, they serve as the document data source and the starting point for the entire pipeline. This article describes how to develop a data source plugin, covering plugin architecture, code examples, and debugging methods, to help you quickly develop and launch your data source plugin.

Prerequisites

Before reading on, ensure you have a basic understanding of the knowledge pipeline and some knowledge of plugin development. You can find relevant information here:

Data Source Plugin Types

Dify supports three types of data source plugins: web crawler, online document, and online drive. When implementing the plugin code, the class that provides the plugin’s functionality must inherit from a specific data source class. Each of the three plugin types corresponds to a different parent class.

To learn how to inherit from a parent class to implement plugin functionality, see Dify Plugin Development: Hello World Guide - 4.4 Implementing Tool Logic.

Each data source plugin type supports multiple data sources. For example:

Web Crawler: Jina Reader, FireCrawl
Online Document: Notion, Confluence, GitHub
Online Drive: OneDrive, Google Drive, Box, AWS S3, Tencent COS

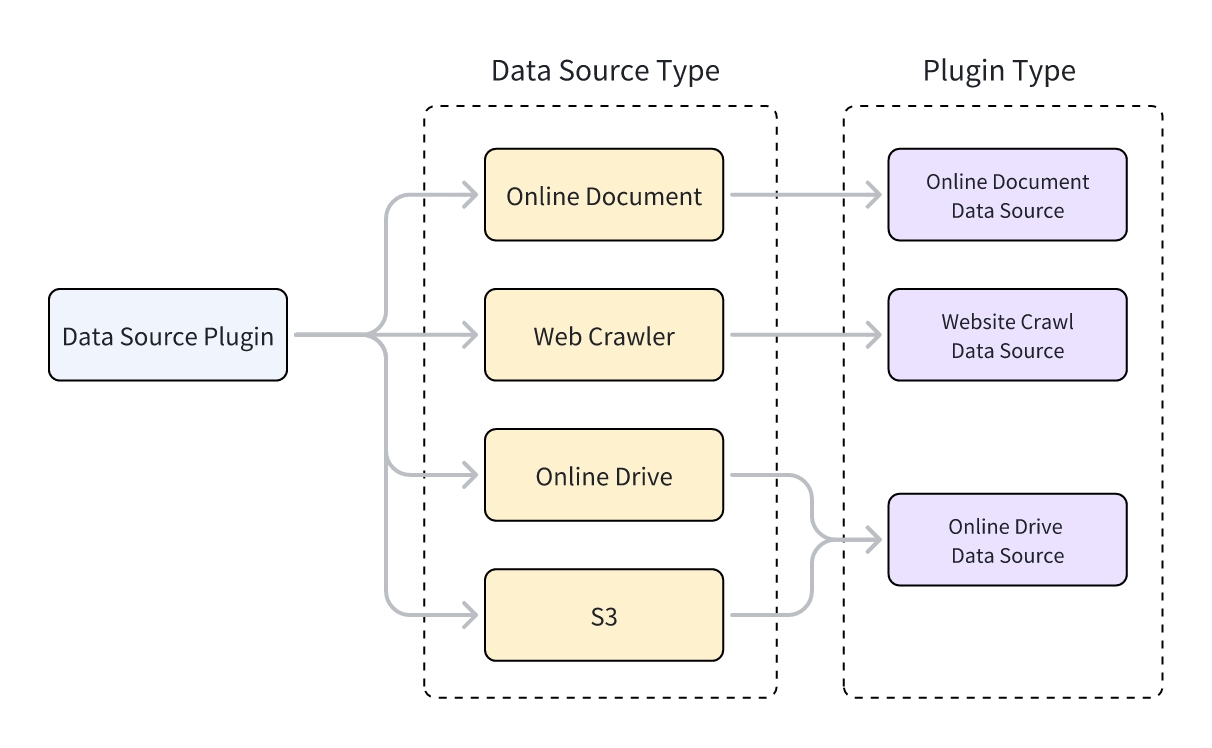

The relationship between data source types and data source plugin types is illustrated below.

Develop a Data Source Plugin

Create a Data Source Plugin

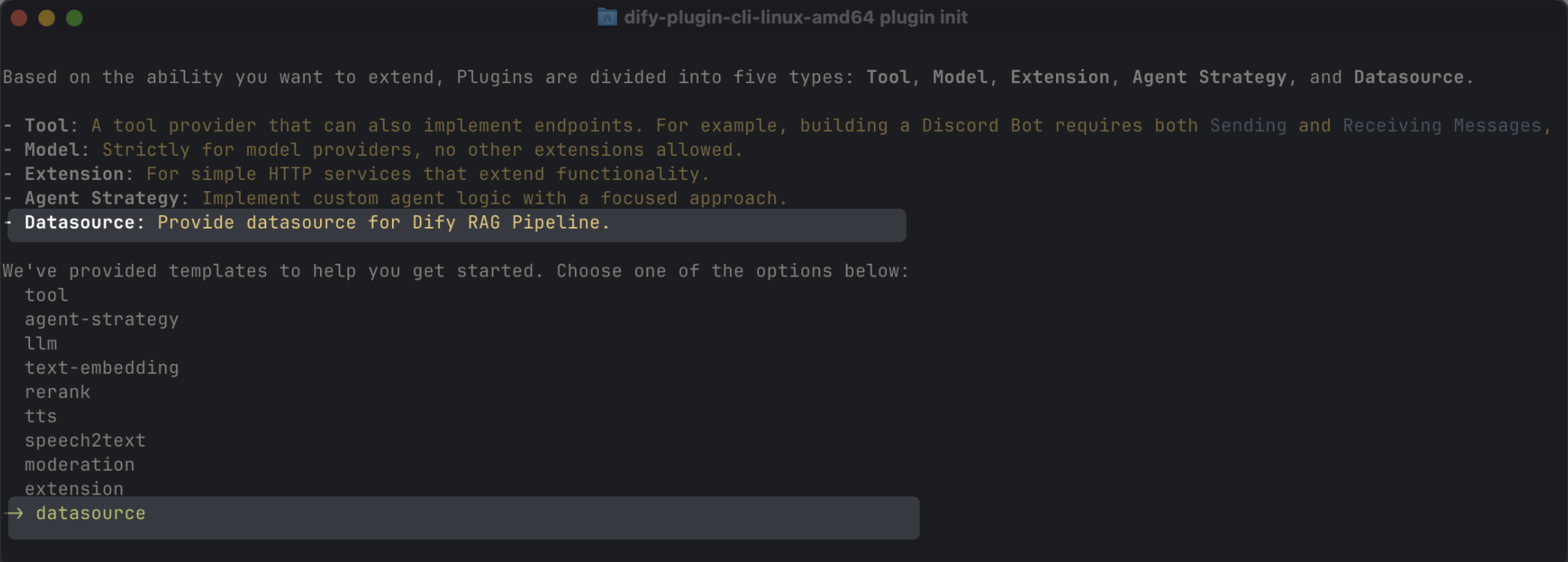

You can use the scaffolding command-line tool to create a data source plugin by selecting the datasource type. After completing the setup, the command-line tool will automatically generate the plugin project code.

dify plugin init

Typically, a data source plugin does not need to use other features of the Dify platform, so no additional permissions are required.

Data Source Plugin Structure

A data source plugin consists of three main components:

The manifest.yaml file: Describes the basic information about the plugin.
The provider directory: Contains the plugin provider’s description and authentication implementation code.
The datasources directory: Contains the description and core logic for fetching data from the data source.

├── _assets
│   └── icon.svg
├── datasources
│   ├── your_datasource.py
│   └── your_datasource.yaml
├── main.py
├── manifest.yaml
├── PRIVACY.md
├── provider
│   ├── your_datasource.py
│   └── your_datasource.yaml
├── README.md
└── requirements.txt

Set the Correct Version and Tag

In the manifest.yaml file, set the minimum supported Dify version as follows:
```
minimum_dify_version: 1.9.0
```
In the manifest.yaml file, add the following tag to display the plugin under the data source category in the Dify Marketplace:
```
tags:
  - rag
```
In the requirements.txt file, set the plugin SDK version used for data source plugin development as follows:
```
dify-plugin>=0.5.0,<0.6.0
```

Add the Data Source Provider

Create the Provider YAML File

The content of a provider YAML file is essentially the same as that for tool plugins, with only the following two differences:

# Specify the provider type for the data source plugin: online_drive, online_document, or website_crawl
provider_type: online_drive # online_document, website_crawl

# Specify data sources
datasources:
  - datasources/PluginName.yaml

For more about creating a provider YAML file, see Dify Plugin Development: Hello World Guide-4.3 Configuring Provider Credentials.

Data source plugins support authentication via OAuth 2.0 or API Key.To configure OAuth, see Add OAuth Support to Your Tool Plugin.

Create the Provider Code File

When using API Key authentication mode, the provider code file for data source plugins is identical to that for tool plugins. You only need to change the parent class inherited by the provider class to DatasourceProvider.

class YourDatasourceProvider(DatasourceProvider):

    def _validate_credentials(self, credentials: Mapping[str, Any]) -> None:
        try:
            """
            IMPLEMENT YOUR VALIDATION HERE
            """
        except Exception as e:
            raise ToolProviderCredentialValidationError(str(e))

When using OAuth authentication mode, data source plugins differ slightly from tool plugins. When obtaining access permissions via OAuth, data source plugins can simultaneously return the username and avatar to be displayed on the frontend. Therefore, _oauth_get_credentials and _oauth_refresh_credentials need to return a DatasourceOAuthCredentials type that contains name, avatar_url, expires_at, and credentials. The DatasourceOAuthCredentials class is defined as follows and must be set to the corresponding type when returned:

class DatasourceOAuthCredentials(BaseModel):
    name: str | None = Field(None, description="The name of the OAuth credential")
    avatar_url: str | None = Field(None, description="The avatar url of the OAuth")
    credentials: Mapping[str, Any] = Field(..., description="The credentials of the OAuth")
    expires_at: int | None = Field(
        default=-1,
        description="""The expiration timestamp (in seconds since Unix epoch, UTC) of the credentials.
        Set to -1 or None if the credentials do not expire.""",
    )

The function signatures for _oauth_get_authorization_url, _oauth_get_credentials, and _oauth_refresh_credentials are as follows:

_oauth_get_authorization_url
_oauth_get_credentials
_oauth_refresh_credentials

def _oauth_get_authorization_url(self, redirect_uri: str, system_credentials: Mapping[str, Any]) -> str:
"""
Generate the authorization URL for {{ .PluginName }} OAuth.
"""
try:
    """
    IMPLEMENT YOUR AUTHORIZATION URL GENERATION HERE
    """
except Exception as e:
    raise DatasourceOAuthError(str(e))
return ""

Add the Data Source

The YAML file format and data source code format vary across the three types of data sources.

Web Crawler

In the provider YAML file for a web crawler data source plugin, output_schema must always return four parameters: source_url, content, title, and description.

output_schema:
    type: object
    properties:
      source_url:
        type: string
        description: the source url of the website
      content:
        type: string
        description: the content from the website
      title:
        type: string
        description: the title of the website
      "description":
        type: string
        description: the description of the website

In the main logic code for a web crawler plugin, the class must inherit from WebsiteCrawlDatasource and implement the _get_website_crawl method. You then need to use the create_crawl_message method to return the web crawl message. To crawl multiple web pages and return them in batches, you can set WebSiteInfo.status to processing and use the create_crawl_message method to return each batch of crawled pages. After all pages have been crawled, set WebSiteInfo.status to completed.

class YourDataSource(WebsiteCrawlDatasource):

    def _get_website_crawl(
        self, datasource_parameters: dict[str, Any]
    ) -> Generator[ToolInvokeMessage, None, None]:

        crawl_res = WebSiteInfo(web_info_list=[], status="", total=0, completed=0)
        crawl_res.status = "processing"
        yield self.create_crawl_message(crawl_res)

        ### your crawl logic
           ...
        crawl_res.status = "completed"
        crawl_res.web_info_list = [
            WebSiteInfoDetail(
                title="",
                source_url="",
                description="",
                content="",
            )
        ]
        crawl_res.total = 1
        crawl_res.completed = 1

        yield self.create_crawl_message(crawl_res)

Online Document

The return value for an online document data source plugin must include at least a content field to represent the document’s content. For example:

output_schema:
    type: object
    properties:
      workspace_id:
        type: string
        description: workspace id
      page_id:
        type: string
        description: page id
      content:
        type: string
        description: page content

In the main logic code for an online document plugin, the class must inherit from OnlineDocumentDatasource and implement two methods: _get_pages and _get_content. When a user runs the plugin, it first calls the _get_pages method to retrieve a list of documents. After the user selects a document from the list, it then calls the _get_content method to fetch the document’s content.

_get_pages
_get_content

def _get_pages(self, datasource_parameters: dict[str, Any]) -> DatasourceGetPagesResponse:
    # your get pages logic
    response = requests.get(url, headers=headers, params=params, timeout=30)
    pages = []
    for item in  response.json().get("results", []):
        page = OnlineDocumentPage(
            page_name=item.get("title", ""),
            page_id=item.get("id", ""),
            type="page",
            last_edited_time=item.get("version", {}).get("createdAt", ""),
            parent_id=item.get("parentId", ""),
            page_icon=None,
        )
        pages.append(page)
    online_document_info = OnlineDocumentInfo(
        workspace_name=workspace_name,
        workspace_icon=workspace_icon,
        workspace_id=workspace_id,
        pages=[page],
        total=pages.length(),
    )
    return DatasourceGetPagesResponse(result=[online_document_info])

Online Drive

An online drive data source plugin returns a file, so it must adhere to the following specification:

output_schema:
    type: object
    properties:
      file:
        $ref: "https://dify.ai/schemas/v1/file.json"

In the main logic code for an online drive plugin, the class must inherit from OnlineDriveDatasource and implement two methods: _browse_files and _download_file. When a user runs the plugin, it first calls _browse_files to get a file list. At this point, prefix is empty, indicating a request for the root directory’s file list. The file list contains both folder and file type variables. If the user opens a folder, the _browse_files method is called again. At this point, the prefix in OnlineDriveBrowseFilesRequest will be the folder ID used to retrieve the file list within that folder. After a user selects a file, the plugin uses the _download_file method and the file ID to get the file’s content. You can use the _get_mime_type_from_filename method to get the file’s MIME type, allowing the pipeline to handle different file types appropriately. When the file list contains multiple files, you can set OnlineDriveFileBucket.is_truncated to True and set OnlineDriveFileBucket.next_page_parameters to the parameters needed to fetch the next page of the file list, such as the next page’s request ID or URL, depending on the service provider.

_browse_files
_download_file

def _browse_files(
self, request: OnlineDriveBrowseFilesRequest
) -> OnlineDriveBrowseFilesResponse:

credentials = self.runtime.credentials
bucket_name = request.bucket
prefix = request.prefix or ""  # Allow empty prefix for root folder; When you browse the folder, the prefix is the folder id
max_keys = request.max_keys or 10
next_page_parameters = request.next_page_parameters or {}

files = []
files.append(OnlineDriveFile(
    id="",
    name="",
    size=0,
    type="folder" # or "file"
))

return OnlineDriveBrowseFilesResponse(result=[
    OnlineDriveFileBucket(
        bucket="",
        files=files,
        is_truncated=False,
        next_page_parameters={}
    )
])

For storage services like AWS S3, the prefix, bucket, and id variables have special uses and can be applied flexibly as needed during development:

prefix: Represents the file path prefix. For example, prefix=container1/folder1/ retrieves the files or file list from the folder1 folder in the container1 bucket.
bucket: Represents the file bucket. For example, bucket=container1 retrieves the files or file list in the container1 bucket. This field can be left blank for non-standard S3 protocol drives.
id: Since the _download_file method does not use the prefix variable, the full file path must be included in the id. For example, id=container1/folder1/file1.txt indicates retrieving the file1.txt file from the folder1 folder in the container1 bucket.

You can refer to the specific implementations of the official Google Drive plugin and the official AWS S3 plugin.

Debug the Plugin

Data source plugins support two debugging methods: remote debugging or installing as a local plugin for debugging. Note the following:

If the plugin uses OAuth authentication, the redirect_uri for remote debugging differs from that of a local plugin. Update the relevant configuration in your service provider’s OAuth App accordingly.
While data source plugins support single-step debugging, we still recommend testing them in a complete knowledge pipeline to ensure full functionality.

Final Checks

Before packaging and publishing, make sure you’ve completed all of the following:

Set the minimum supported Dify version to 1.9.0.
Set the SDK version to dify-plugin>=0.5.0,<0.6.0.
Write the README.md and PRIVACY.md files.
Include only English content in the code files.
Replace the default icon with the data source provider’s logo.

Package and Publish

In the plugin directory, run the following command to generate a .difypkg plugin package:

dify plugin package . -o your_datasource.difypkg

Next, you can:

Import and use the plugin in your Dify environment.
Publish the plugin to Dify Marketplace by submitting a pull request.

For the plugin publishing process, see Publishing Plugins.
